RIFF Box 2

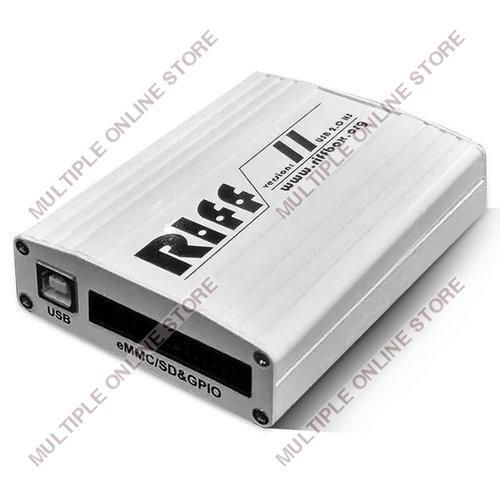

RIFF Box 2 hardware is designed to accommodate a large variety of communication protocols.

RIFF Box 2 – Hardware Specification:

• Dual-core Cortex-M4 MCU @ 204MHz
• PC to Box USB (Device) Speed: Hi-Speed (480 Mbps)
• Box to Device (Host) Speed: Full-Speed (48 Mbps)
• SD/MMC Interface with 1-Bit (DAT0) and 4-Bit (DAT0-DAT3) Bus Width support and SD_CLK up to 52 MHz
• UART Interface
• RIFF™ Smart Probing Feature
• Level-adjustable 23 GPIO Lines (1.65V to 3.6V) for interfacing a range of devices and protocols, such as NAND, SPI, I2C, etc.
• 4 fixed 3.3V GPIO Lines

RIFF Box 2 - Interface Specifications:

• 20-Pin Male Connector:
  • JTAG Interface: TRST, TDI, TMS, TCK, RTCK, TDO and NRST
  • SWD (Serial Wire Debug) Interface: SWCLK, SWDIO (SWDIO and SWCLK are overlaid on the TMS and TCK pins)
• 30-Pin Male Connector:
  • SD/MMC Interface 1/4Bit @ 52MHz
  • Level-adjustable 23 GPIO Lines (1.65V to 3.6V)
• USB Device Connector: connects the Box with PC @ Hi-Speed (480 Mbps), approx. 20 MByte/sec
• USB Host Connector: connects the Box with USB devices @ Full-Speed (48 Mbps), approx. 1.5-2 MByte/sec
• RJ-45 Connector:
  • 6.1 RIFF™ Smart Probing Feature
  • 6.2 UART Port
  • 6.3 4 Fixed 3.3V GPIO Lines

RIFF Box 2 - Supported SD/MMD Revisions:

Revisions 1.0 to 1.7 (for MMC: v4.0, v4.1, v4.2, v4.3, v4.41, v4.5, v4.51, v5.0) and higher

RIFF Box 2 - Supported JTAG Cores *:

• ARM7
• ARM920
• ARM926
• ARM946
• ARM7EJS
• ARM11
• CORTEX-A5
• CORTEX-A8
• CORTEX-A9
• CORTEX-A15
• OMAP3430
• OMAP3630
• OMAP4430
• TEGRA2 (CORTEX-A9)
• TEGRA2 (ARM7)
• QUALCOMM S3 (ARM7, ARM11, SCORPION)
• QUALCOMM S4 (ARM7, ARM11, SCORPION)
• NOVATHOR
• PXA270
• PXA312
• MIPS32™ IR5Bit
• MIPS32™ IR8Bit

RIFF Box 2 - Software:

• RIFF JTAG Manager
• RIFF Remote helper
• RIFF Admin client / SN reader
• RIFF Box USB drivers

New software is fully compatible with Windows 10, which provides effortless installation. Just connect RIFF Box to Windows 10-based PC and everything will be installed automatically. For older Windows versions, there are custom drivers provided with RIFF JTAG Manager installer.

RIFF Box 2 - Package Content:

• Riff Box 2 – 1 pc.

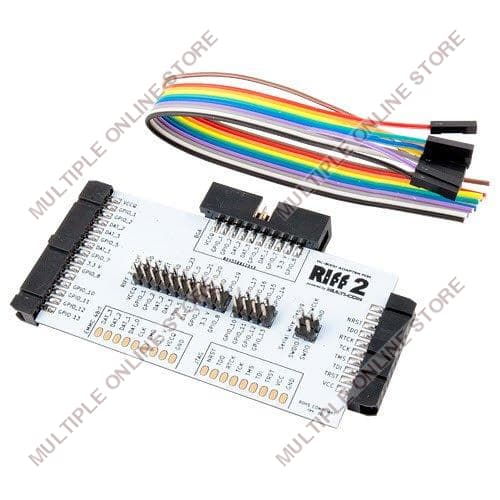

• eMMC/JTAG Adapter - 1pc.
• Flat Cable – 1 pc.

Due to the onrush of technology and efforts to meet every customer's demands, the supplier retains the right to change some positions in the list of cables and accessories coming together with the product. Therefore, the package content presented above is rather tentative. More details on the matter can be obtained from our sales managers.

* Developer provides support only for those phones which are on the list of supported. Not all servicing features can be applied to some supported models, due to difference of hardware / software versions. Complete list of supported models you can find on the official product page, or on the GSM forum.
